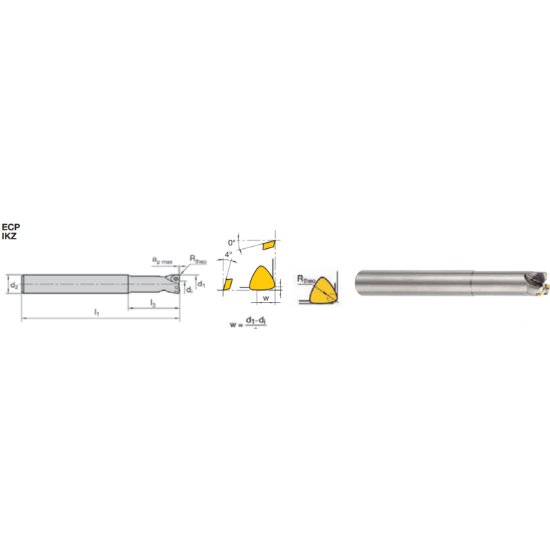

Picture of LMT Fette ECP05 X11.125WF-I 60 Milling Feed Mill Milling Cutter 1.000 Cutter Diameter

LMT Fette ECP05 X11.125WF-I 60 Milling Feed Mill Milling Cutter 1.000 Cutter Diameter

Part Number: LMT1950314 ISO: ECP05 X11.125WF-I 60 ANSI:ECP05 X11.125WF-I 60
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1013626

Description

LMT FETTE 1950314 Feed Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 7.4800 189.99MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 11
Geometry & Angles
Corner Radius 0.0600 1.52MM
Performance & Capacity
Cut Dia Min 0.5700 14.48MM
Depth Of Cut Max 0.0400
Materials & Finish
Tool Material Steel
