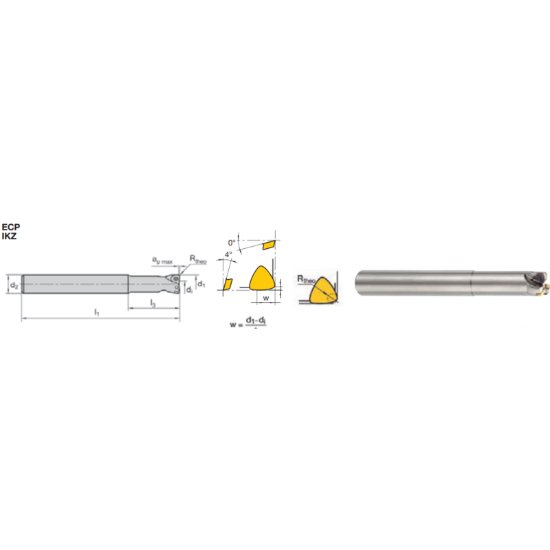

Picture of LMT Fette ECP05 X11.100WE-I 80 Milling Feed Mill Milling Cutter 0.750 Cutter Diameter

LMT Fette ECP05 X11.100WE-I 80 Milling Feed Mill Milling Cutter 0.750 Cutter Diameter

Part Number: LMT1950313 ISO: ECP05 X11.100WE-I 80 ANSI:ECP05 X11.100WE-I 80
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1013625

Description

LMT FETTE 1950313 Feed Mill SHELL1.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Indexable Feed Mill
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style EC
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Dimensions & Sizing
Overall Length 6.8900 175.01MM
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Geometry & Angles
Corner Radius 0.0600 1.52MM
Performance & Capacity
Cut Dia Min 0.3200 8.13MM
Depth Of Cut Max 0.0400
Materials & Finish
Tool Material Steel
