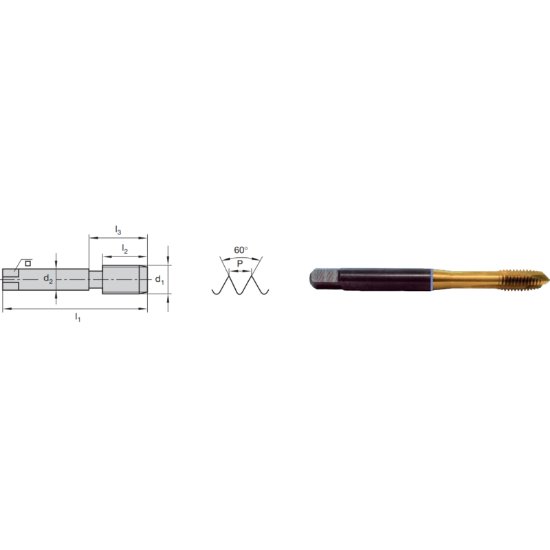

Picture of LMT Fette 9117808 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 9117808 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT9117808

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174687
Vendor: Sussex Tool and Supply
$0.00
FETTE 9/16"x18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
