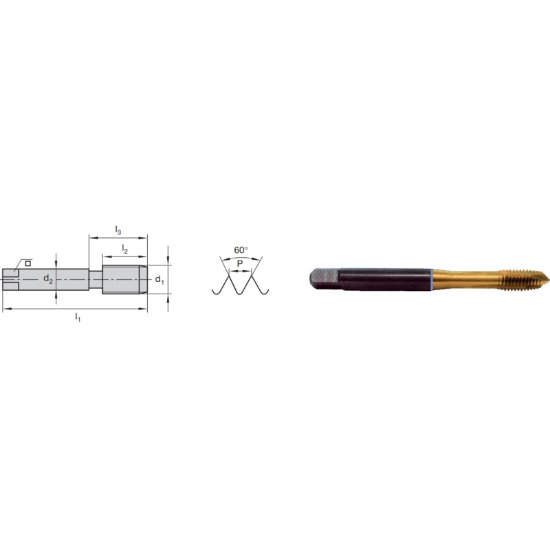

Picture of LMT Fette 9117807 9/16-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 9117807 9/16-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT9117807

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174686
Vendor: Sussex Tool and Supply
$0.00
FETTE 9/16"x12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 9/16"
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
