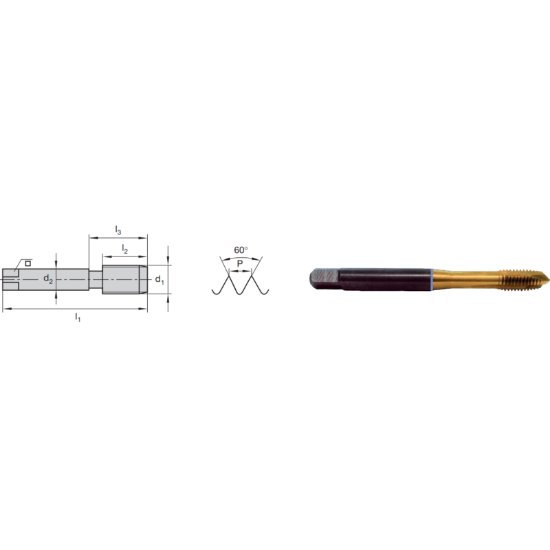

Picture of LMT Fette 9117771 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 9117771 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT9117771
Looking for alternatives…
Find a drill for this tap No.8 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174670
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE No.8x32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.8
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiCN +
Standards & Identification
Dimension Standard DINSI
