  • LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

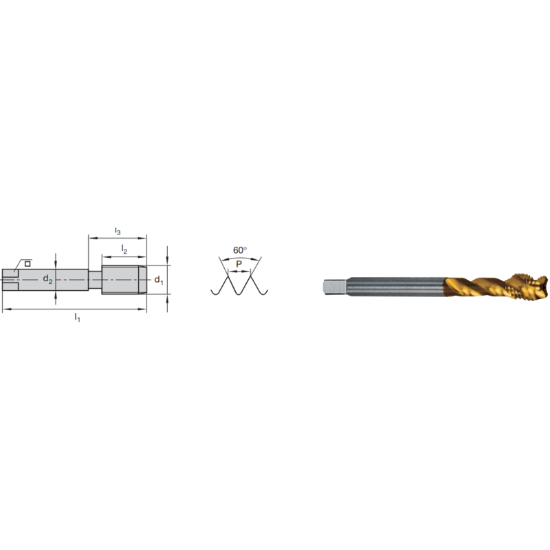

Picture of LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 9116566 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9116566
Delivery date: 3-5 days
$80.19
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#10, Material#17, Material#8, Material#3
Application Tapping, Mod Bottom Tapping, Cut Tapping
Shipping State Illinois
Sold by Pieces 1
Coating TiCN +
Package Size 1
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Type NF/UNF/UNEF
Flute Direction R - Right
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Type Standard
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 1/4"
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 28.00TPI
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
