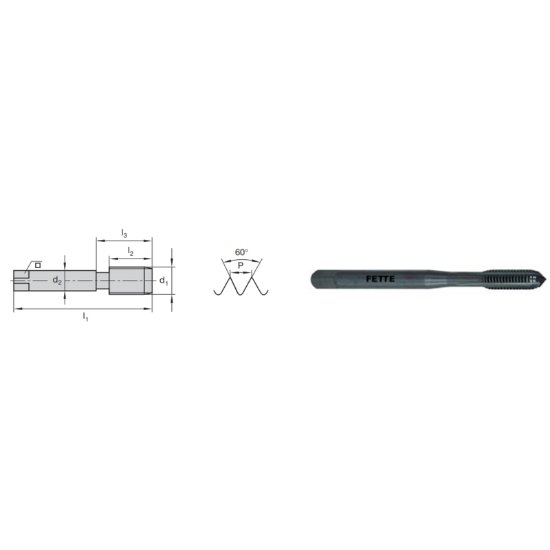

Picture of LMT Fette 9104901 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide +

LMT Fette 9104901 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide +

Part Number: LMT9104901
Looking for alternatives…
Find a drill for this tap 5/8" × 18.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174599
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE 5/8"x18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + 2B/3B NF/UNF/UNEF Steel Black oxide is a conversion coating used on iron, zinc, steel, stainless steel, and copper. It results in a black, smooth surface finish
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 5/8"
Tap Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Oxide +
Standards & Identification
Dimension Standard DINSI
