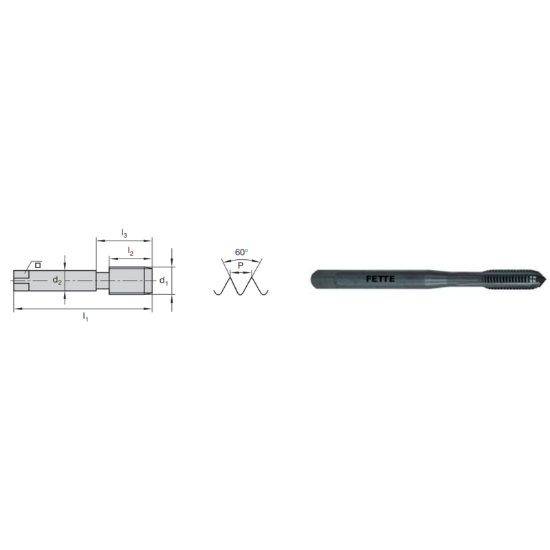

LMT FETTE 9101599 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9101599
Delivery date: 3-5 days
$100.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Black oxide is a conversion coating used on iron, zinc, steel, stainless steel, and copper. It results in a black, smooth surface finish

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#16
Package Size 1
Coating Oxide +
Shipping State Illinois
Additional Key Information 1 Tapping
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size 1/4"
Overall Len 3.1490 79.98MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating Ductile Iron, Gray Iron
Tool Material Steel
Machine Side TAP0.191x0.255
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
