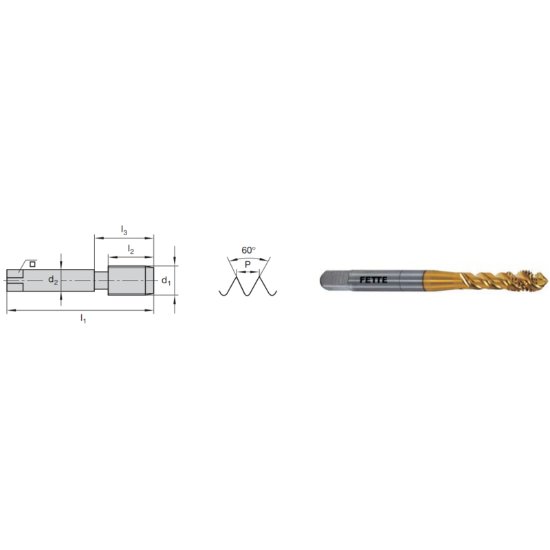

Picture of LMT Fette 9100582 3/4-16.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 9100582 3/4-16.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT9100582

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174667
Vendor: Sussex Tool and Supply
$0.00
FETTE 3/4"x16.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-PM TiCN + GH11 +0.005" NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit GH11 +0.005"
Tap Style Over Sized Mod Bottom
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
