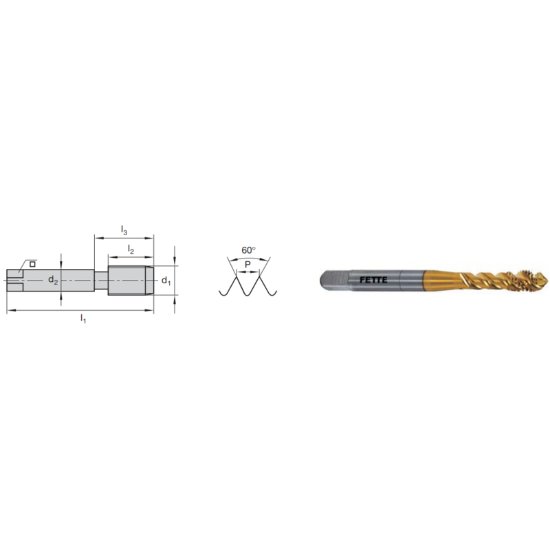

Picture of LMT Fette 9100573 7/16-20.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 9100573 7/16-20.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT9100573

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174659
Vendor: Sussex Tool and Supply
$0.00
FETTE 7/16"x20.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-PM TiCN + GH11 +0.005" NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit GH11 +0.005"
Tap Style Over Sized Mod Bottom
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
