  • LMT FETTE 9100572 7/16-14.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

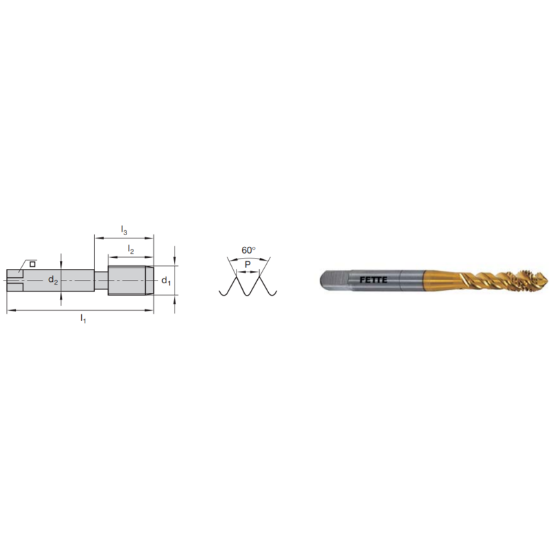

Picture of LMT FETTE 9100572 7/16-14.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Sorry - this product is no longer available

LMT FETTE 9100572 7/16-14.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT9100572
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Tapping
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping
Performance Rating High Performance
Material # Material#3, Material#17, Material#8, Material#15
Shipping State Illinois
Coating TiCN +
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Limit GH11 +0.005"
Tap Square 0.2420
Flutes/Inserts 3
Machine Side TAP0.242x0.323
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Thread Size 7/16"
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Tap Style Over Sized Mod Bottom
Thread Pitch 14.00TPI
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
