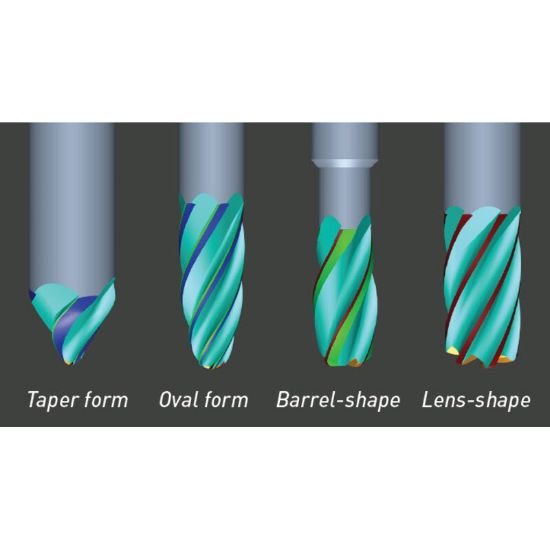

Picture of LMT Fette 2647632 Dia 5/8 SH 0.6250 LOC 1.2500 OAL4.00 End Mill Conical Form Carbide AlTiN Single End Carbide Conical TP A0.0800 2.03mm SWIFT Carb

LMT Fette 2647632 Dia 5/8 SH 0.6250 LOC 1.2500 OAL4.00 End Mill Conical Form Carbide AlTiN Single End Carbide Conical TP A0.0800 2.03mm SWIFT Carb

Part Number: LMT2647632 0.625 x 0.625 x 1.250 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1280884
Vendor: Sussex Tool and Supply
$0.00
LMT FETTE End Mill Carbide AlTiN Carbide Conical TP A 0.0800 2.03MM Conical Form Flutes 4 Single End SWIFT CARB Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Conical TP A
Cutter Style Conical
Single/Double End Single End
Corner Radius 0.0800 2.03MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
