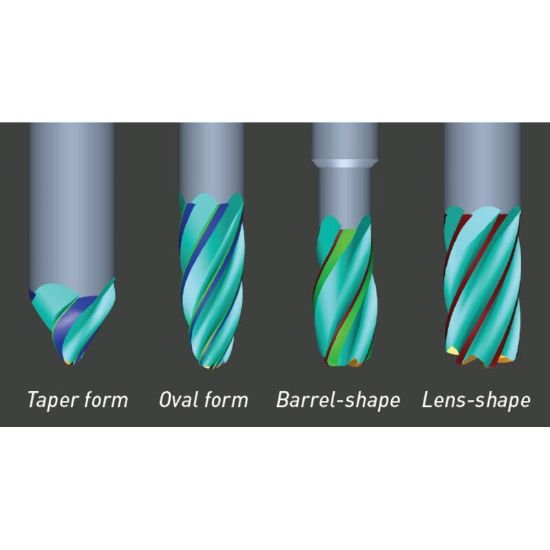

Picture of LMT Fette 2647631 Dia 1/4 SH 0.3750 LOC 0.4250 OAL2.50 End Mill Conical Form Carbide AlTiN Single End Carbide Conical TP A0.0400 1.02mm SWIFT Carb

LMT Fette 2647631 Dia 1/4 SH 0.3750 LOC 0.4250 OAL2.50 End Mill Conical Form Carbide AlTiN Single End Carbide Conical TP A0.0400 1.02mm SWIFT Carb

Part Number: LMT2647631 0.250 x 0.375 x 0.425 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1280883
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

LMT FETTE End Mill Carbide AlTiN Carbide Conical TP A 0.0400 1.02MM Conical Form Flutes 4 Single End SWIFT CARB Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Conical TP A
Cutter Style Conical
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.4250 10.80MM
Geometry & Angles
Corner Radius 0.0400 1.02MM
Helix Angle 30
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
