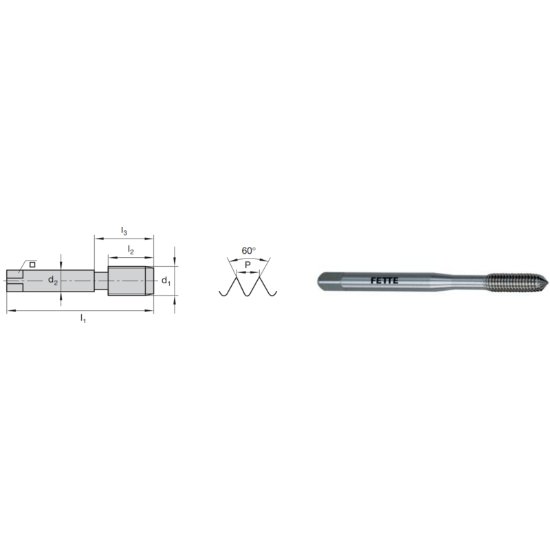

Picture of LMT Fette 2423952 1/4-28.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

LMT Fette 2423952 1/4-28.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

Part Number: LMT2423952

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174922
Vendor: Sussex Tool and Supply
$0.00
FETTE 1/4"x28.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Overall Length 3.1490 79.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 28.00TPI
Thread Type NF/UNF/UNEF
Thread Size 1/4"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
