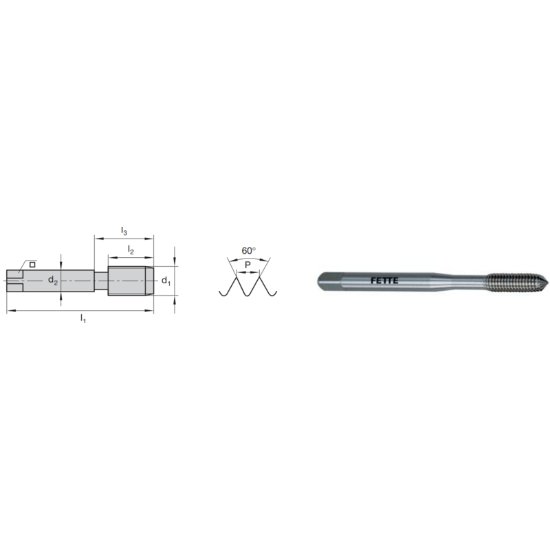

Picture of LMT Fette 2423948 No.10-24.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

LMT Fette 2423948 No.10-24.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

Part Number: LMT2423948

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174919
Vendor: Sussex Tool and Supply
$0.00
FETTE No.10x24.00TPI Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Thread Size No.10
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
