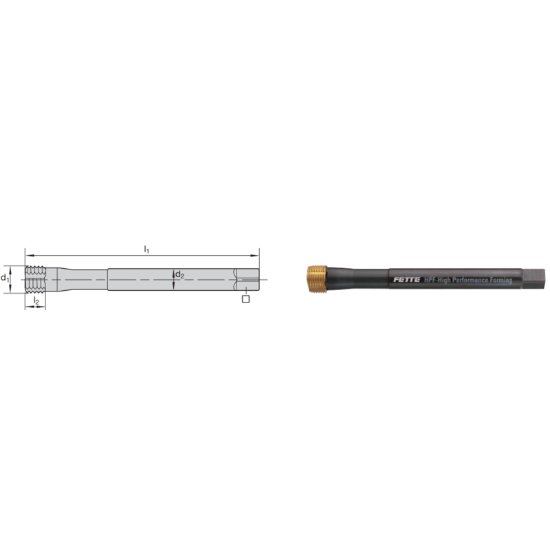

Picture of LMT Fette 1403078 M18-1.50mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1403078 M18-1.50mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1403078

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174828
Vendor: Sussex Tool and Supply
$0.00
FETTE M18x1.50MM Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5510 14.00MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Thread Size M18
Thread Limit 6H
Tap Style Roll Form Indexable
Tap Type Indexable
Dimension Standard DINSI
Tap Drill Range 0.6787 17.24MM - 0.6866 17.44MM
Tap Square 0.4330
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 1045183
