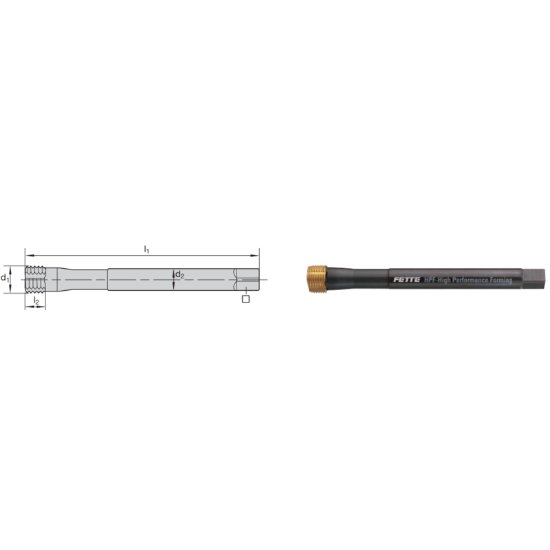

Picture of LMT Fette 1403072 M16-1.50mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1403072 M16-1.50mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1403072
Looking for alternatives…
Find a drill for this tap M16 × 1.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174826
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE M16x1.50MM Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form Indexable
Tap Type Indexable
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 2422202
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 1.50MM
Thread Size M16
Tap Drill Range 0.6000 15.24MM - 0.6079 15.44MM
Tap Square 0.3540
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiCN +
Standards & Identification
Dimension Standard DINSI
