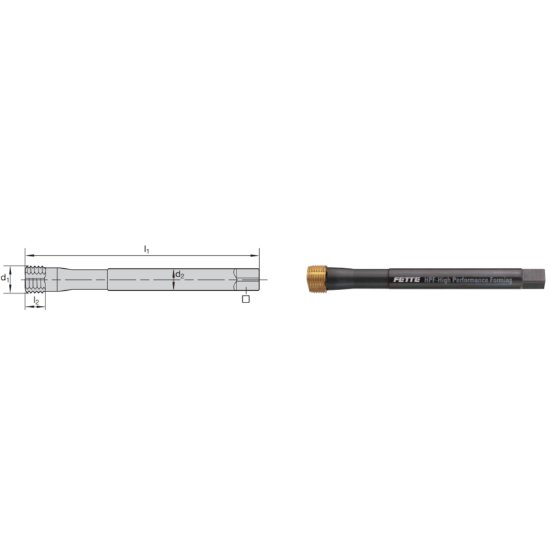

Picture of LMT Fette 1403060 M12-1.00mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1403060 M12-1.00mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1403060
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M12 × 1.00MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174820
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE M12x1.00MM Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form Indexable
Tap Type Indexable
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 2422203
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.00MM
Thread Size M12
Tap Drill Range 0.4524 11.49MM - 0.4579 11.63MM
Tap Square 0.2760
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiCN +
Standards & Identification
Dimension Standard DINSI
