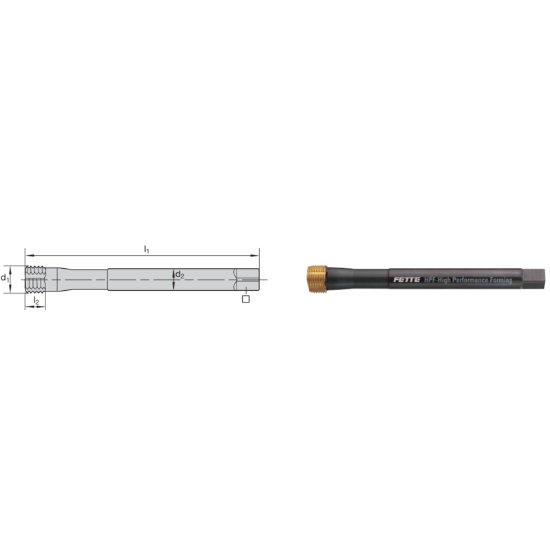

LMT Fette 1403053 With OIL GrooveS M12-1.00mm Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1403053 M12x1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174808
Vendor: Sussex Tool and Supply
$0.00
FETTE M12x1.00MM Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3540 8.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Thread Size M12
Thread Limit 6H
Tap Style Roll Form Indexable
Tap Type Indexable
Dimension Standard DINSI
Tap Drill Range 0.4524 11.49MM - 0.4579 11.63MM
Tap Square 0.2760
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 2422203
