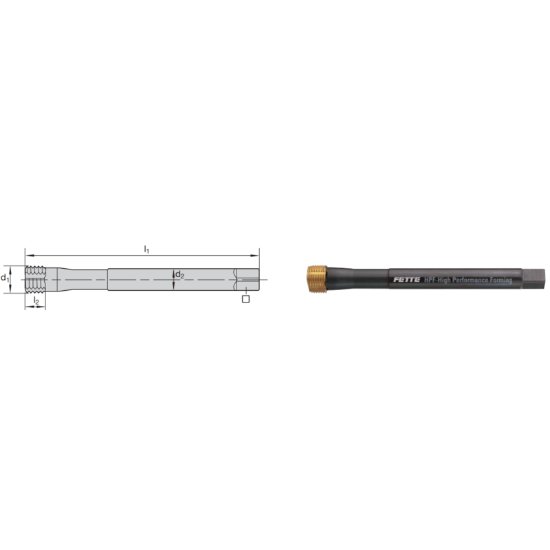

Picture of LMT Fette 1402685 7/16-20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1402685 7/16-20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1402685

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174800
Vendor: Sussex Tool and Supply
$0.00
FETTE 7/16"x20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 2B/3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Thread Size 7/16"
Thread Limit 2B/3B
Tap Style Roll Form Indexable
Tap Type Indexable
Dimension Standard DINSI
Tap Drill Range 0.4118 10.46MM - 0.4185 10.63MM
Tap Square 0.2420
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 242203
