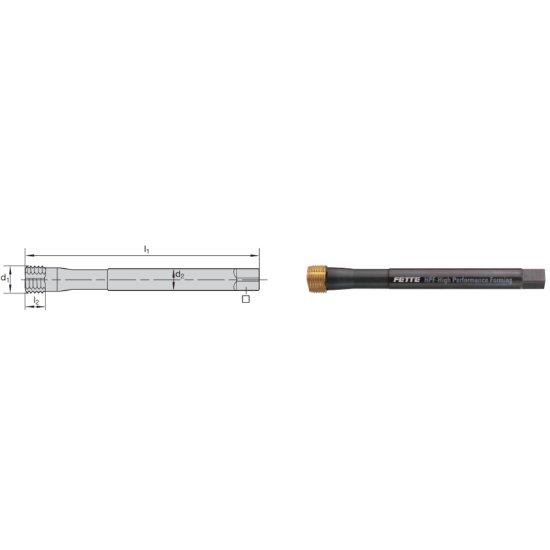

Picture of LMT Fette 1402665 3/4-16.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1402665 3/4-16.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1402665
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
3/4" × 16.00TPI Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174804
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE 3/4"x16.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 2B/3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Tap Style Roll Form Indexable
Tap Type Indexable
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 1045183
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.5900 14.99MM
Thread Pitch 16.00TPI
Thread Size 3/4"
Tap Drill Range 0.7177 18.23MM - 0.7264 18.45MM
Tap Square 0.4420
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat Carbide
Coating TiCN +
Standards & Identification
Dimension Standard DINSI
