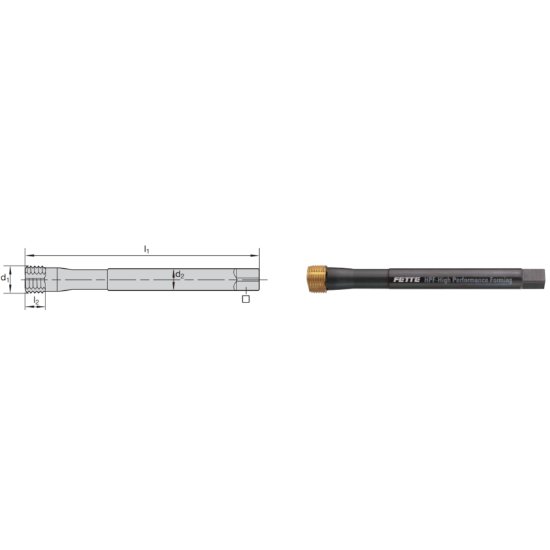

Picture of LMT Fette 1402663 1/2-20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

LMT Fette 1402663 1/2-20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN +

Part Number: LMT1402663

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174801
Vendor: Sussex Tool and Supply
$0.00
FETTE 1/2"x20.00TPI Roll Form Indexable Indexable 1.5P-2.0P Carbide TiCN + 2B/3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3670 9.32MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Size 1/2"
Thread Limit 2B/3B
Tap Style Roll Form Indexable
Tap Type Indexable
Dimension Standard DINSI
Tap Drill Range 0.4744 12.05MM - 0.4811 12.22MM
Tap Square 0.2750
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Insert Screw 242203
