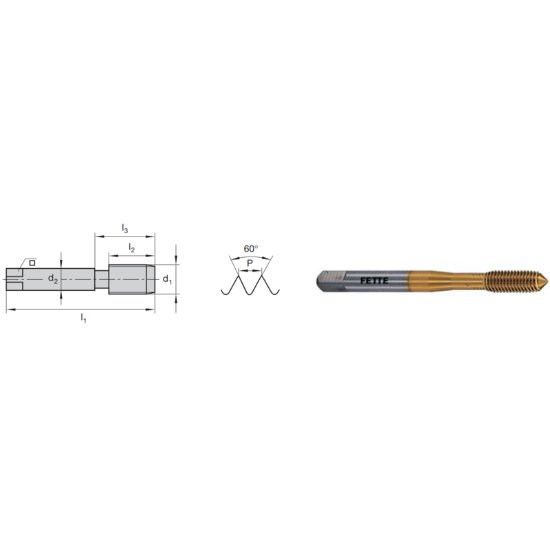

Picture of LMT Fette 1401479 M6-1.00mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401479 M6-1.00mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401479

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174890
Vendor: Sussex Tool and Supply
$0.00
FETTE M6x1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Thread Size M6
Thread Limit 6H
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Square 0.1930
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
