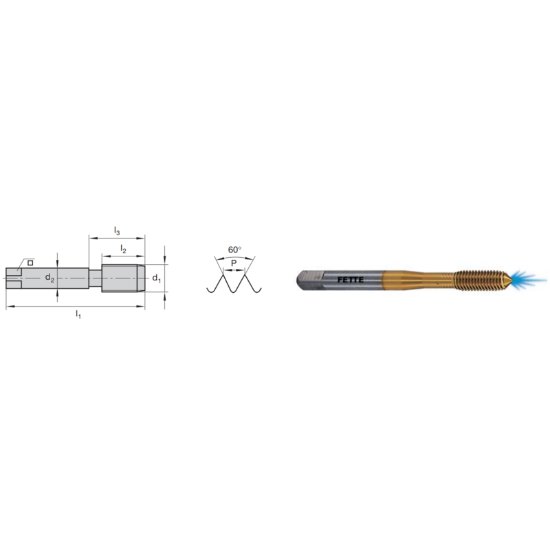

LMT Fette 1401471 3/4-10.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401471

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174909
Vendor: Sussex Tool and Supply
$415.59
FETTE 3/4"x10.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 2B/3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 4.9210 124.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5900 14.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Thread Size 3/4"
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.6988 17.75MM - 0.7126 18.10MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
