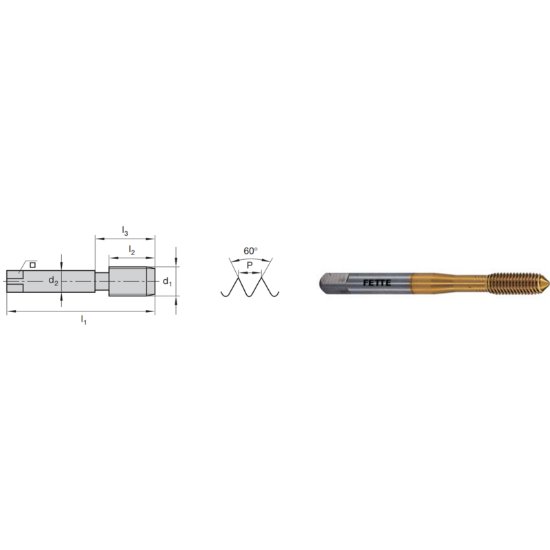

Picture of LMT Fette 1401355 No.10-32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401355 No.10-32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401355

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174834
Vendor: Sussex Tool and Supply
$0.00
FETTE No.10x32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 2B/3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Size No.10
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
