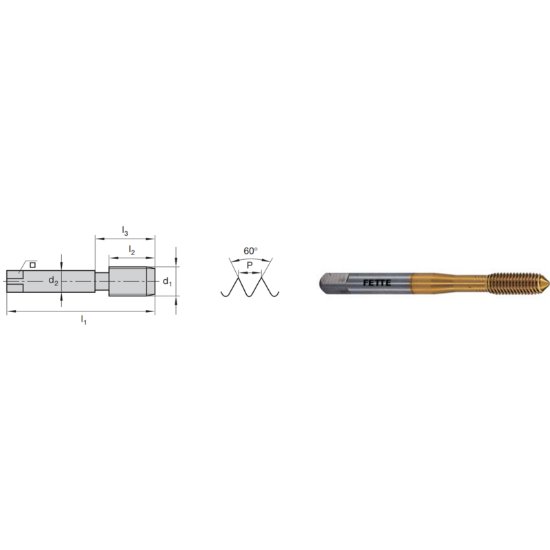

Picture of LMT Fette 1401345 9/16-12.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401345 9/16-12.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401345

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174847
Vendor: Sussex Tool and Supply
$120.47
FETTE 9/16"x12.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 2B/3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NC/UNC
Thread Size 9/16"
Thread Limit 2B/3B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.5197 13.20MM - 0.5311 13.49MM
Tap Square 0.3220
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
