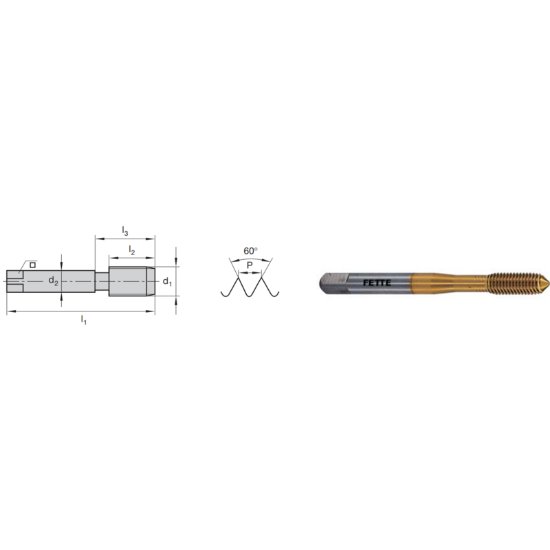

Picture of LMT Fette 1401325 M20-1.50mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401325 M20-1.50mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401325

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174874
Vendor: Sussex Tool and Supply
$234.68
FETTE M20x1.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 4.9210 124.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6300 16.00MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Thread Size M20
Thread Limit 6H
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.7594 19.29MM - 0.7654 19.44MM
Tap Square 0.4720
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
