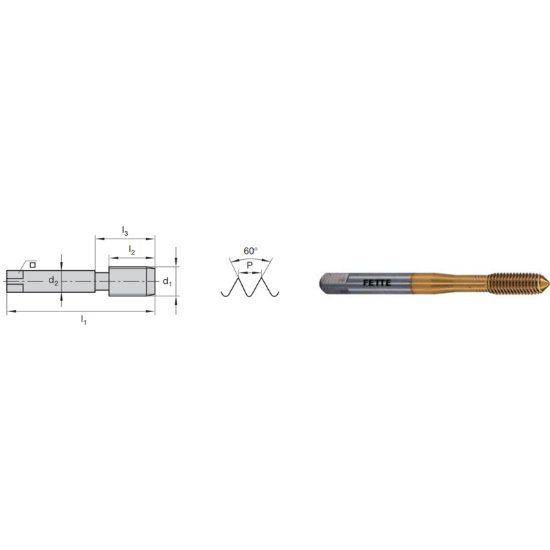

Picture of LMT Fette 1401183 M12-1.75mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401183 M12-1.75mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401183
Looking for alternatives…
Find a drill for this tap M12 × 1.75MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174867
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE M12x1.75MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.3540 8.99MM
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Tap Square 0.2760
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiCN +
Standards & Identification
Dimension Standard DIN/DIN
