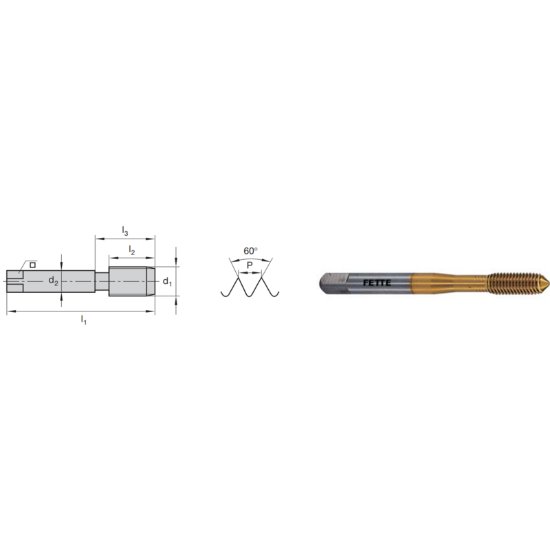

Picture of LMT Fette 1401173 M4-0.70mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401173 M4-0.70mm Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401173

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174854
Vendor: Sussex Tool and Supply
$0.00
FETTE M4x0.70MM Roll Form Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, High Temp, <40HRC Steel
Coating TiCN +
Overall Length 2.4800 62.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1770 4.50MM - #16
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Thread Size M4
Thread Limit 6H
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tap Square 0.1340
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
