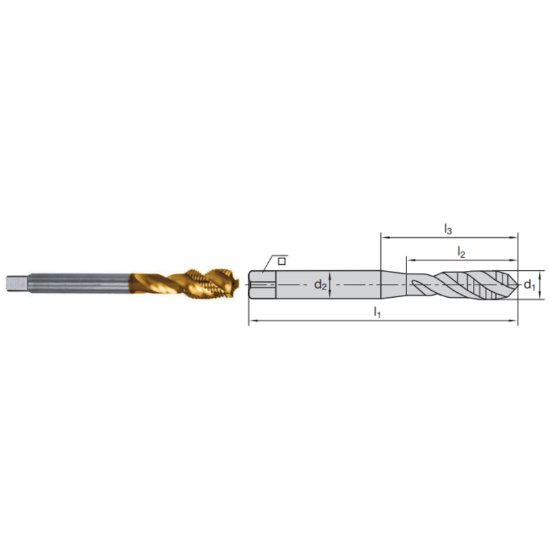

Picture of LMT Fette 1401151 1-12.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT Fette 1401151 1-12.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Part Number: LMT1401151

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174338
Vendor: Sussex Tool and Supply
$0.00
Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Products specifications
Attribute name Attribute value
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.8000 20.32MM
Thread Limit 2B/3B
Cutter Type Taping
Tap Square 0.6000
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 5.5120 140.00MM
Multi Spindle Yes
Machine Side (Toolpost) TAP0.600x0.800
Cutting Edge Definition and shaped from blank ingots, Unlike traditional cutting tools, shaved, which are cut, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 5
Shipping State ILLINOIS
Cutting Edge Material HSSE-PM
Tool Material Steel
Coating TiCN +
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 1"
Thread Pitch 12.00TPI
Tap Chamfer 1.5P-2.5P
