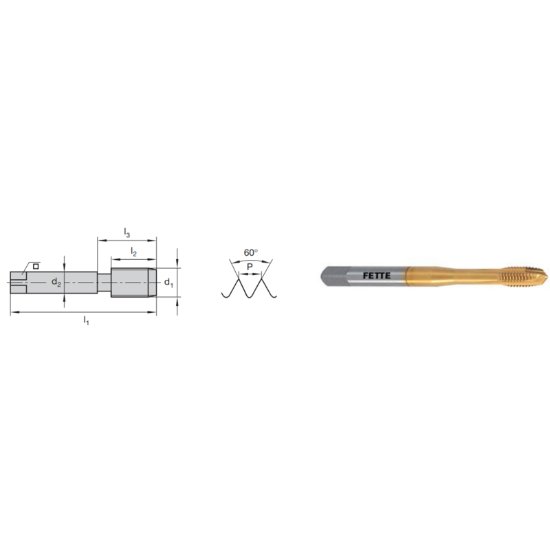

Picture of LMT Fette 1401101 1-1/2-12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT Fette 1401101 1-1/2-12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401101

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174727
Vendor: Sussex Tool and Supply
$0.00
FETTE 1-1/2"x12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 2B/3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 6.6930 170.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.2330 31.32MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1-1/2"
Thread Limit 2B/3B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 1.4134 35.90MM - 1.4350 36.45MM
Tap Square 0.9250
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
