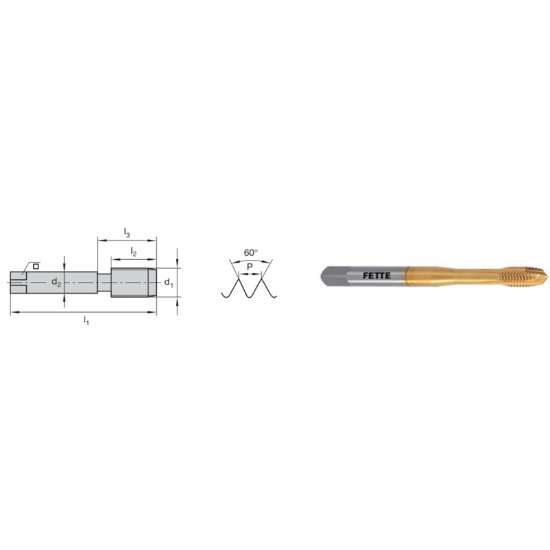

LMT Fette 1401093 1-12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401093

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174719
Vendor: Sussex Tool and Supply
$277.62
FETTE 1"x12.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 2B/3B NF/UNF/UNEF Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 12.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1"
Thread Limit 2B/3B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DINSI
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.6000
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
