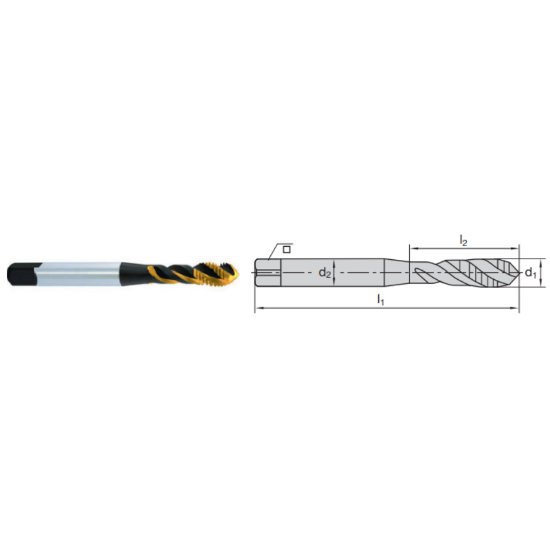

Picture of LMT Fette 1401062 1-3/8-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1401062 1-3/8-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1401062

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174487
Vendor: Sussex Tool and Supply
$759.41
FETTE 1-3/8"x6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 2B/3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 7.8740 200.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.1080 28.14MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 6.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1-3/8"
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.2016 30.52MM - 1.2449 31.62MM
Tap Square 0.8310
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
