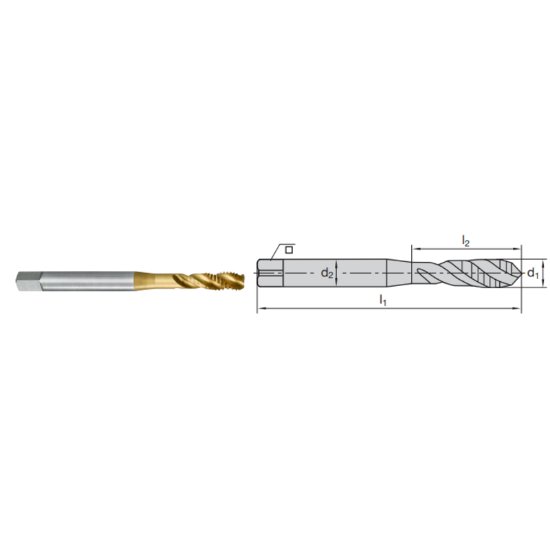

Picture of LMT Fette 1401037 5/16-18.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT Fette 1401037 5/16-18.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Part Number: LMT1401037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174321
Vendor: Sussex Tool and Supply
$0.00
Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.3180 8.08MM
Thread Limit 2B/3B
Cutter Type Taping
Tap Square 0.2380
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 3.5430 89.99MM
Multi Spindle Yes
Machine Side (Toolpost) TAP0.238x0.318
Cutting Edge Definition and shaped from blank ingots, Unlike traditional cutting tools, shaved, which are cut, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State ILLINOIS
Cutting Edge Material HSSE-PM
Tool Material Steel
Coating TiCN +
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size 5/16"
Thread Pitch 18.00TPI
Tap Chamfer 1.5P-2.5P
Only registered users can write reviews
