  • LMT FETTE 1401032 No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

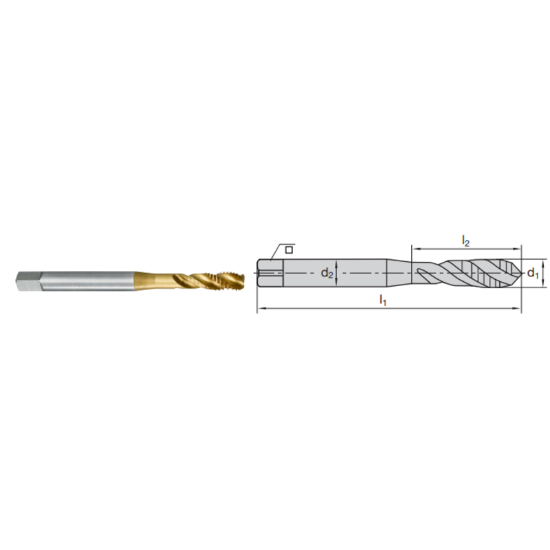

Picture of LMT FETTE 1401032 No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401032 No.6-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401032
Delivery date: 3-5 days
$44.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#8, Material#17, Material#3
Sold by Pieces 1
Shipping State Illinois
Coating TiCN +
Package Size 1
Additional Key Information 1 Tapping
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 2.2050 56.01MM
Tool Material Steel
Tap Square 0.1100
Thread Size No.6
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Limit 2B/3B
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tap Type Bottoming
Thread Pitch 32.00TPI
Tap Chamfer 1.5P-2.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Agricultural YES
Multi Spindle Yes
