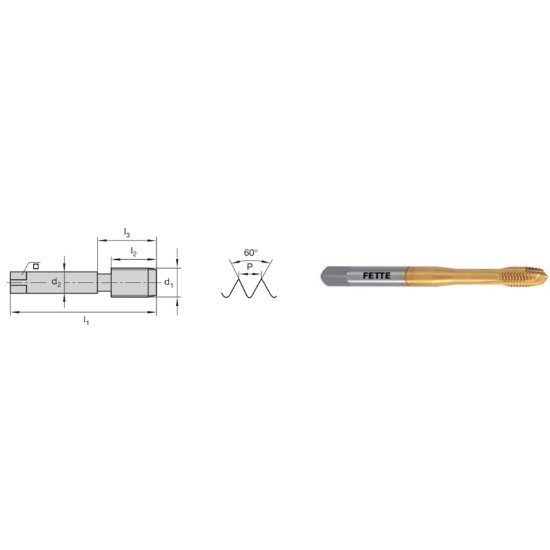

Picture of LMT Fette 1400989 1-3/4-5.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT Fette 1400989 1-3/4-5.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1400989
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
1-3/4" × 5.00TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174728
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

FETTE 1-3/4"x5.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 2B/3B NC/UNC Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 8.6610 219.99MM
Shank/Pilot Dia 1.4300 36.32MM
Flutes/Inserts 5
Thread Pitch 5.00TPI
Thread Size 1-3/4"
Tap Drill Range 1.5339 38.96MM - 1.5941 40.49MM
Tap Square 1.0720
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiCN +
Standards & Identification
Dimension Standard DINSI
