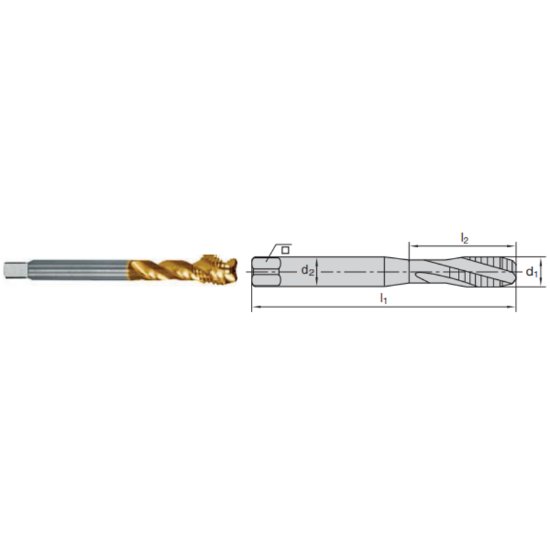

Picture of LMT Fette 1400936 M16-1.50mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT Fette 1400936 M16-1.50mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Part Number: LMT1400936
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M16 × 1.50MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174355
Vendor: Sussex Tool and Supply
$113.64

Description

FETTE M16x1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-PM TiCN + 2B/3B Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.5P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Flutes/Inserts 4
Thread Pitch 1.50MM
Thread Size M16
Tap Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Square 0.3540
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B/3B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiCN +
Standards & Identification
Dimension Standard DIN/DIN
