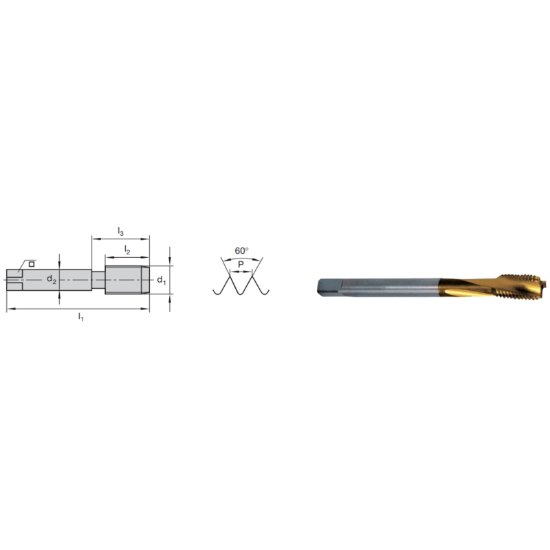

Picture of LMT Fette 1400155 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT Fette 1400155 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Part Number: LMT1400155

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174576
Vendor: Sussex Tool and Supply
$215.36
FETTE M12x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-PM TiCN + 2B/3B Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating <42HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiCN +
Overall Length 3.9370 100.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3940 10.01MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Square 0.3150
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
