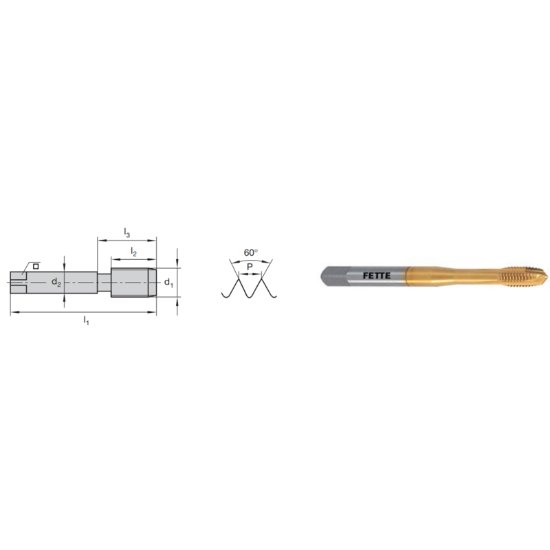

Picture of LMT Fette 1394441 M18-1.50mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT Fette 1394441 M18-1.50mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1394441

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174747
Vendor: Sussex Tool and Supply
$152.40
FETTE M18x1.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 4.3310 110.01MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M18
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Tap Square 0.4330
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
