  • LMT FETTE 1393933 M6-1.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

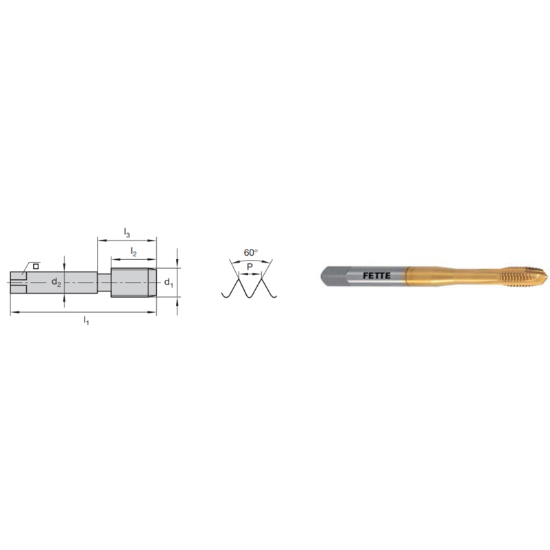

Picture of LMT FETTE 1393933 M6-1.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT FETTE 1393933 M6-1.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1393933
Delivery date: 3-5 days
$61.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#8, Material#15, Material#17, Material#3
Sold by Pieces 1
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Style Cut Spiral Point
Tap Chamfer 3.5P-5.0P
Thread Type Metric
Overall Len 3.1560 80.16MM
Tap Type Plug
Flute Direction R - Right
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Machine Side TAP0.193x0.236
Tool Material Steel
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
