  • LMT FETTE 1393924 M5-0.80MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

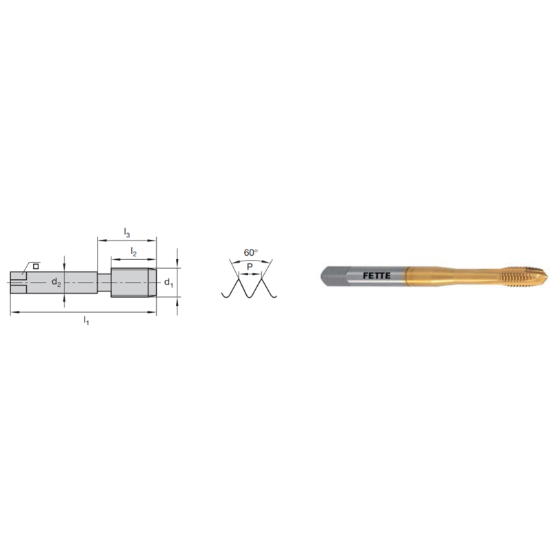

Picture of LMT FETTE 1393924 M5-0.80MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT FETTE 1393924 M5-0.80MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1393924
Delivery date: 3-5 days
$60.62
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#17, Material#3, Material#8, Material#15
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Additional Key Information 1 Tapping
Performance Rating High Performance
Sold by Pieces 1
Coating TiCN +
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Flute Direction R - Right
Machine Side TAP0.193x0.236
Length Type Standard
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1930
Thread Size M5
Thread Pitch 0.80MM
Tap Style Cut Spiral Point
Thread Type Metric
Overall Len 2.7560 70.00MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
