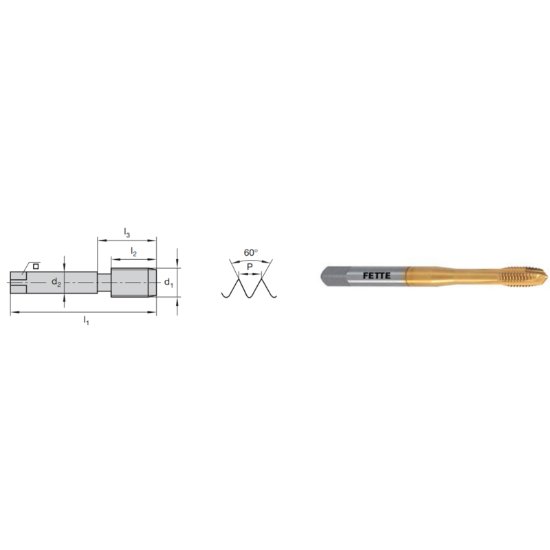

Picture of LMT Fette 1393915 M4-0.70mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT Fette 1393915 M4-0.70mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1393915
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M4 × 0.70MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1174730
Vendor: Sussex Tool and Supply
$47.00

Description

FETTE M4x0.70MM Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Shank/Pilot Dia 0.1770 4.50MM - #16
Flutes/Inserts 3
Thread Pitch 0.70MM
Thread Size M4
Tap Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tap Square 0.1340
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TiCN +
Standards & Identification
Dimension Standard DIN/DIN
