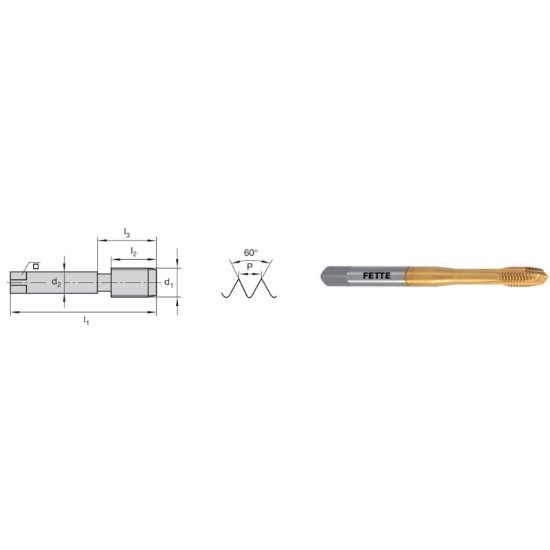

Picture of LMT Fette 1393818 M20-2.50mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT Fette 1393818 M20-2.50mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Part Number: LMT1393818

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1174750
Vendor: Sussex Tool and Supply
$0.00
FETTE M20x2.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-PM TiCN + 6H Metric Steel TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TiCN +
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6300 16.00MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4720
Tap Chamfer 3.5P-5.0P
Multi Spindle Yes
