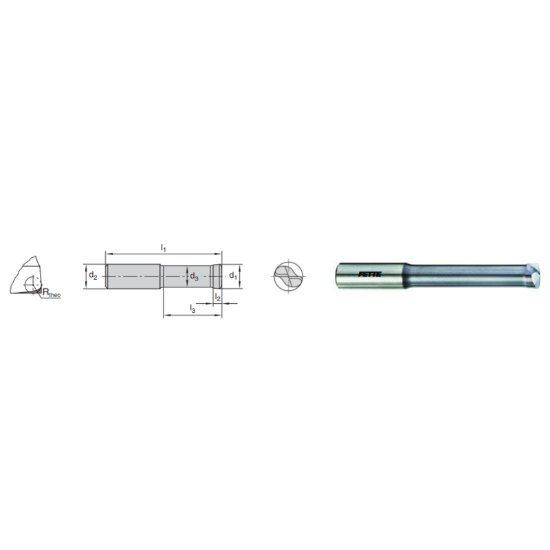

Picture of LMT Fette 10392 Dia 5/16 SH 0.3125 LOC 0.1200 OAL2.50 End Mill Carbide TiAlN Single End High Feed0.0310 0.79mm SWIFT Carb

LMT Fette 10392 Dia 5/16 SH 0.3125 LOC 0.1200 OAL2.50 End Mill Carbide TiAlN Single End High Feed0.0310 0.79mm SWIFT Carb

Part Number: LMT10392 0.313 x 0.313 x 0.120 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1280863
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

LMT FETTE End Mill Carbide TiAlN High Feed 0.0310 0.79MM Flutes 2 Single End SWIFT CARB Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.1200 3.05MM
Neck Length 0.9400 23.88MM
Geometry & Angles
Corner Radius 0.0310 0.79MM
Helix Angle 0
Performance & Capacity
Cut Rating <55HRC Steel, High Temp, Stainless Steel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
