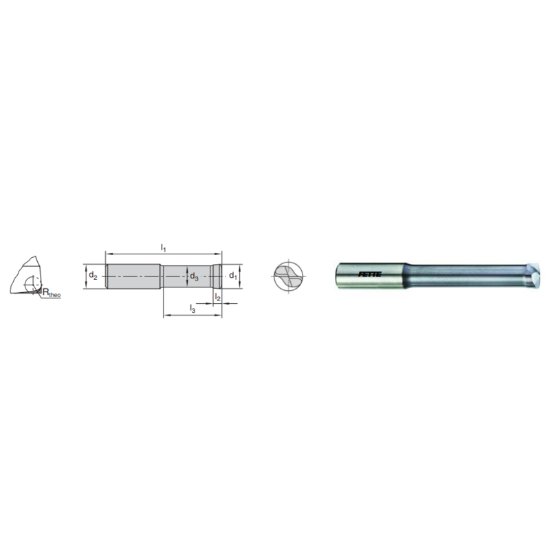

Picture of Lmt Fette 10390 Dia 1/4 Sh 0.2500 Loc 0.1040 Oal2.50 End Mill Carbide Tialn Single End High Feed0.0250 0.64mm Swift Carb

Lmt Fette 10390 Dia 1/4 Sh 0.2500 Loc 0.1040 Oal2.50 End Mill Carbide Tialn Single End High Feed0.0250 0.64mm Swift Carb

Part Number: LMT10390

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: 1003297
Vendor: Sussex Tool and Supply
$0.00

Carbide end mill with TiAlN coating has cylindrical connection 0.2500 diameter. Single end high feed 0.0250 0.64mm swift. Made by LMT FETTE. Toolpost connection type is cylindrical.

Key Details

Materials & Finish

  • Coating: TiAlN
  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL0.2500

Grades & Coatings

  • Alternate Description: LMT FETTE End Mill Carbide TiAlN High Feed 0.0250 0.64MM Flutes 2 Single End SWIFT CARB

Other Details

  • Brand: LMT FETTE
  • Shipping State: ILLINOIS
  • Made In Usa: No

Technical Overview

What It Does

Cuts material with high feed rate. Designed for efficient machining. Suitable for single end operations.

Composition

Carbide tool material. TiAlN coating. Cylindrical connection 0.2500.

Typical Uses

Used in machine tools with toolpost. Operates with 0.0250 feed. Applied in end milling tasks.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Solid End Mill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.2500
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.2500 6.35MM - 1/4 - E
Family Group Swift Carb
Coolant Thru Non Coolant
Coating TiAlN
Mach Side Connection Size 0.2500 6.35MM - 1/4 - E
Tool Diameter 0.2500 6.35MM - 1/4 - E
Flutes Or Inserts 2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.1040 2.64MM
End Of Tool Shape High Feed
Cutter Style Carbide Feed Mill
Single Or Double End Single End
Corner Radius 0.0250 0.64MM
Inch Or Metric Inch
Helix Angle 0°
Center Cutting Non Center Cutting
Neck Length 0.7700 19.56MM
