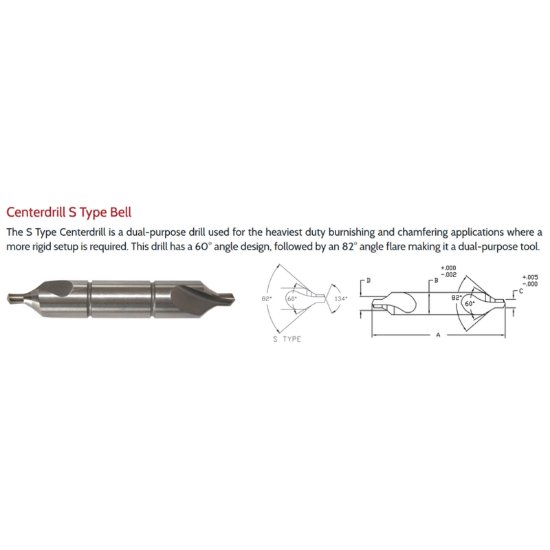

LINK CO-TL-054 18S TYPE DED Cobalt CENTERDrill, TIALN COAT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LINCO-TL-054
Delivery date: 3-5 days
$101.52
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#16, Material#4, Material#20
Sold by Pieces 1
Coating TiAlN
Additional Key Information 2 Cobalt
Shipping State Michigain
Additional Key Information 1 Center Drill
Package Size 1
Application Center Drilling, Drilling
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.1701 4.32MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tool Material Cobalt
Cutter Dia 0.1701 4.32MM
Flutes/Inserts 2
Included Angle 82°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
