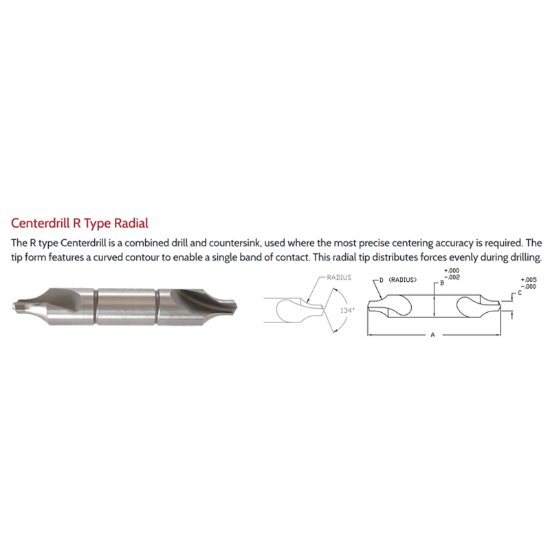

LINK CO-TL-004 3R TYPE DED Cobalt CENTERDrill, TIALN COAT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LINCO-TL-004
Delivery date: 3-5 days
$24.76
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#15, Material#16, Material#4
Application Center Drilling, Drilling
Additional Key Information 1 Center Drill
Additional Key Information 2 Cobalt
Shipping State Michigain
Package Size 1
Coating TiAlN
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.2130 5.41MM - #3
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cut Dia Min 0.2130 5.41MM - #3
Tool Material Cobalt
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
