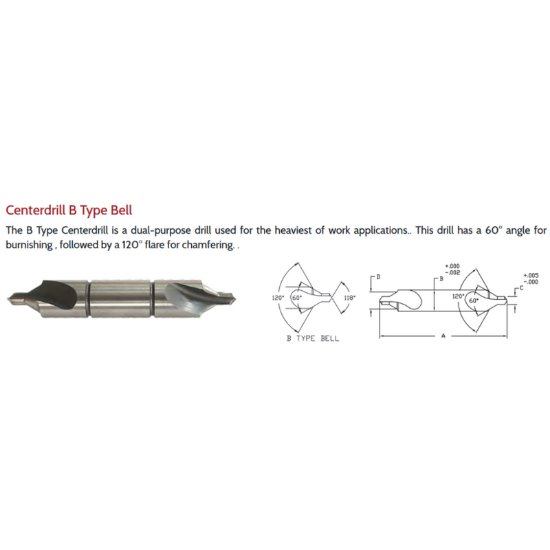

Picture of Link 25-TC-142 16B Type DED HSS CenterDrill, TICN COAT

Link 25-TC-142 16B Type DED HSS CenterDrill, TICN COAT

Part Number: LIN25-TC-142
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1113756
Vendor: Sussex Tool and Supply
$36.10

Description

LINK 25-TC-142 Center Drill TiCN 0.1770 4.50MM - #16 Drill Dia High Speed Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA YES
Cutter Type Center Drill
Type Of Tool Drill
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.1770 4.50MM - #16
Geometry & Angles
Included Angle 120°
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Cut Dia Min 0.1770 4.49MM - #16
Materials & Finish
Tool Material High Speed Steel
Cutting Edge Mat HSS
Coating TICN
