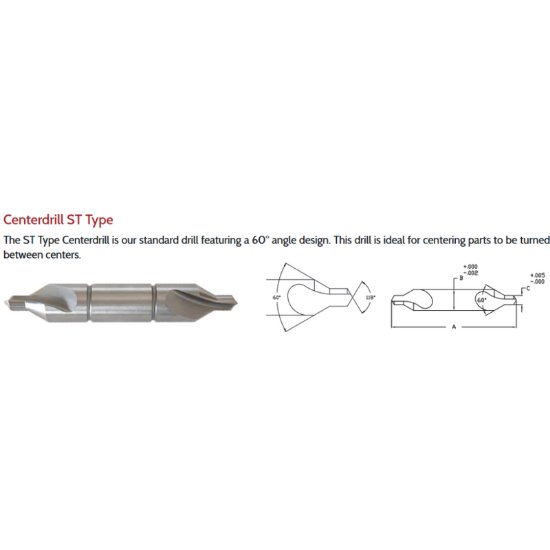

LINK 20-T5-094 3ST TYPE DED Powder Metal T-15 HSS CENTERDrill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN20-T5-094
Delivery date: 3-5 days
$23.11
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#16, Material#15, Material#4
Application Center Drilling, Drilling
Additional Key Information 2 Powder Metal
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Center Drill
Shipping State Michigain
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.2130 5.41MM - #3
Included Angle 60°
Flutes/Inserts 2
Tool Material Powder Metal
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cut Dia Min 0.2130 5.41MM - #3
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
