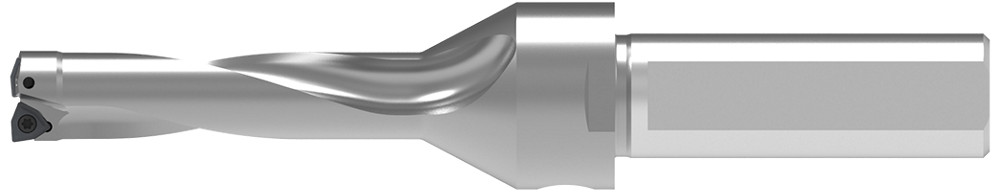

Picture of KOMET/Ceratizit 1589419109 KUB Trigon 0.75x2.25/W2910/0.750/3.000 R Indexable Drill Multi Insert 0.7500 19.05mm - 3/4 Dia 4.0x Dia Thru Coolant V57 61910

KOMET/Ceratizit 1589419109 KUB Trigon 0.75x2.25/W2910/0.750/3.000 R Indexable Drill Multi Insert 0.7500 19.05mm - 3/4 Dia 4.0x Dia Thru Coolant V57 61910

Part Number: CER1589419109 ISO: KUB Trigon 0.75x2.25/W2910/0.750/3.000 R
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$557.85
SKU: 1585304
Products specifications
Attribute name Attribute value
General Information
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.6279 168.35MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Flute Length 3.1968 81.20MM
Dia Deep 4.0x Dia
Flange Dia 28.7MM
Performance & Capacity
Drill DOC 3.0000 76.20MM
